TAP-5 ORE BRUSHED JORDAN BRONZE - VOLT FREE (DRY CONTACT)

Name: TAP-5 ORE BRUSHED JORDAN BRONZE - VOLT FREE (DRY CONTACT)
Brand: Faradite
Price: 440.3 GBP
Availability: InStock

P.O.A

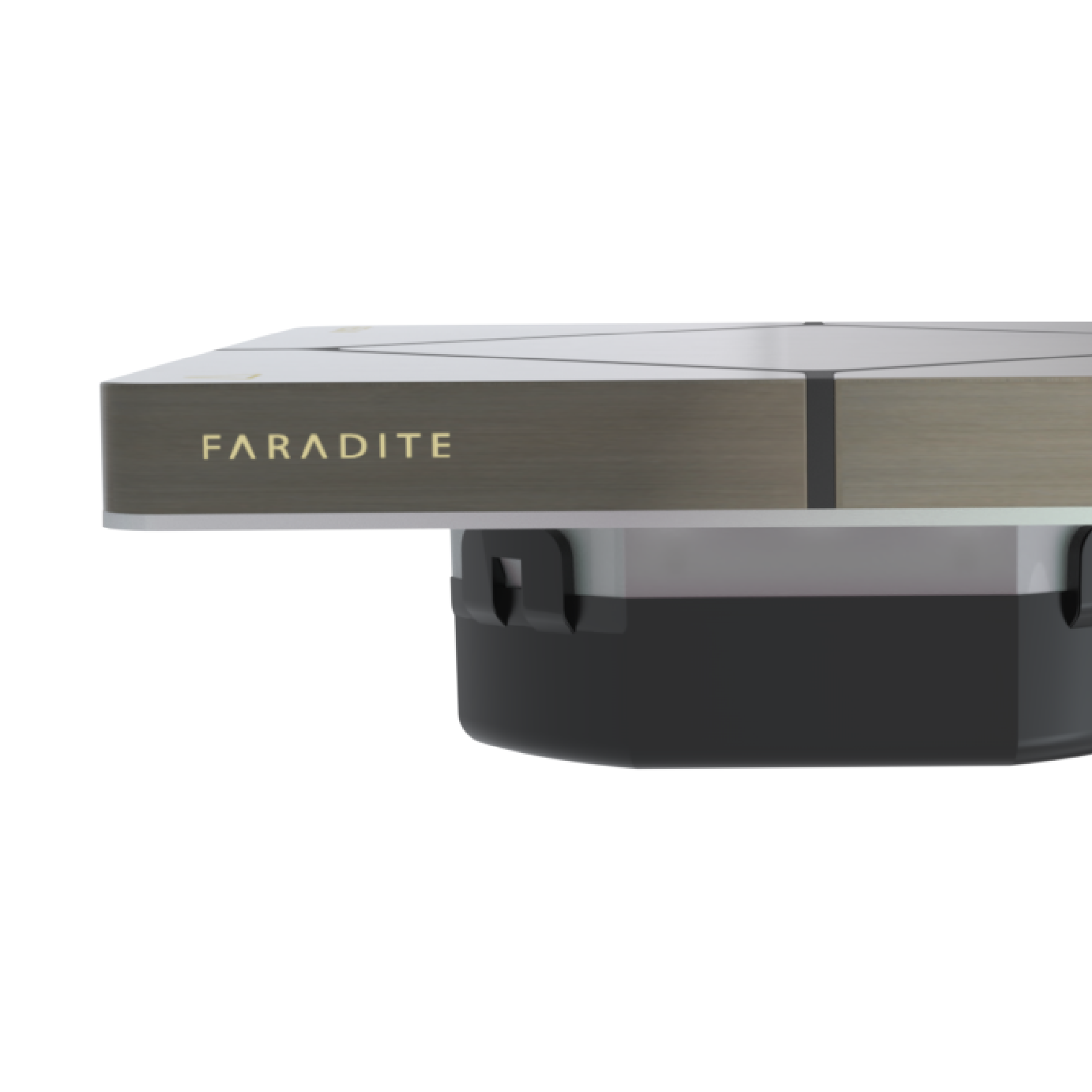

The TAP-5 ORE Volt Free switch combines 8mm thick, solid brass capacitive switch technology with volt free (dry contact) contact closure outputs. This means our beautiful hand finished brass ORE finishes can be connected to a variety of control systems using the range of fly lead options we offer.

The halo light offers a crisp, gentle glow to the outer edge of the switch plate, and can be configured to be permanently on or permanently off, as well as optionally turned on to respond to switch presses. The standby halo light brightness can be adjusted with a press and hold of the button on the coupler.

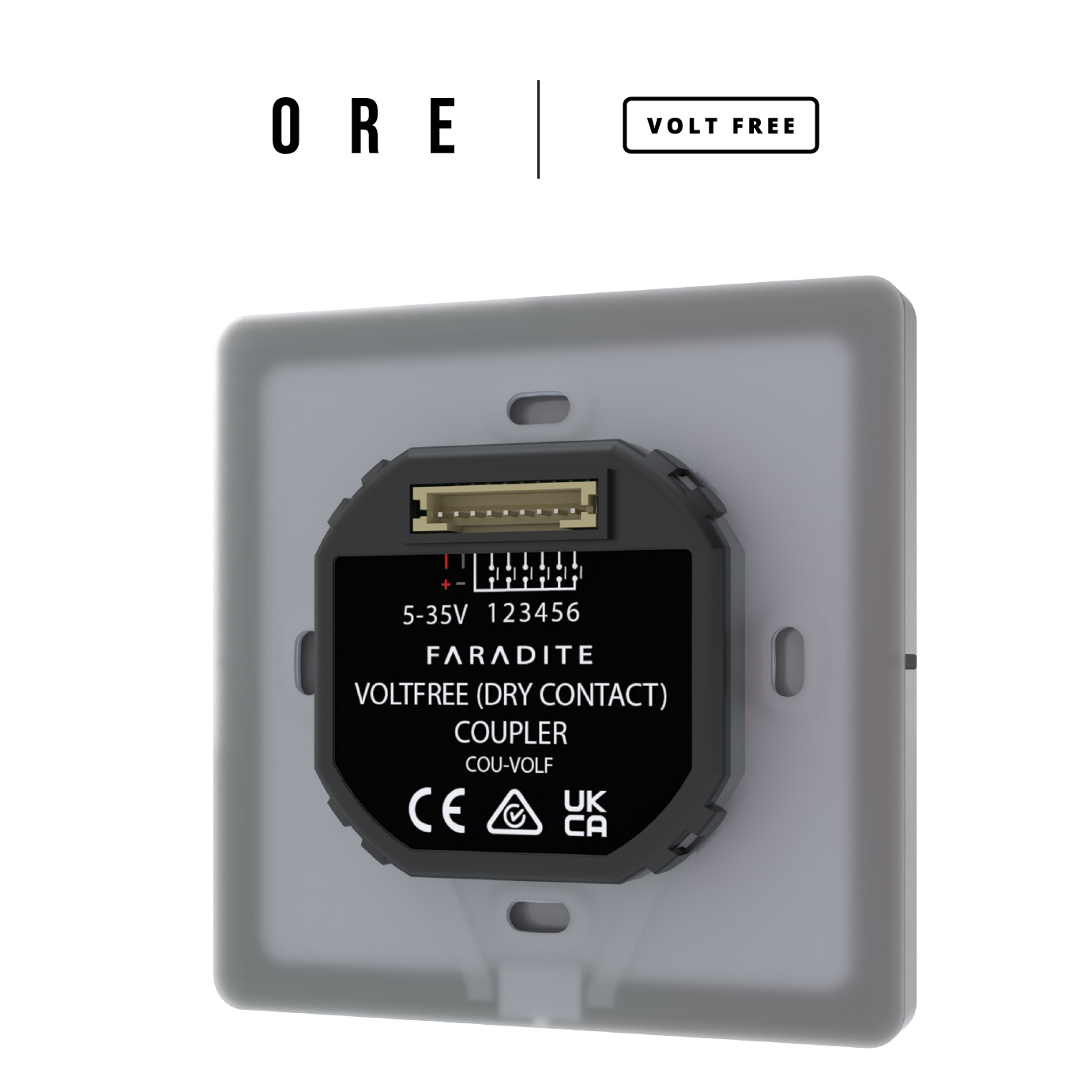

A full TAP-5 ORE Volt Free switch comprises a front plate, a volt free coupler, and any one of the available fly leads

Key Features

- Solid brass, 5 gang switch plates for professional smart homes, compatible with, Lutron, Crestron, Loxone, and more.
- Control your lights, lighting scenes, blinds, curtains, and more.
- A beautiful, ‘halo’ light provides a crisp, clean orientation light around the outer edge of the switch, (brightness set on install).
- Hand finished in the UK.
- Capacitive touch technology.
- Volt Free / Dry contact outputs - simple, potential free outputs for wide compatibility with many control systems.
- Fast wiring - pre-made fly leads drastically reduce wiring time. Fly leads available for: Lutron QSE-CI-WCI / Crestron C2N-UNI8IO / Loxone Nano DI Tree / Loxone star wired systems & Universal fly lead options.
- 5-35V DC POWER - can be powered by 5V, 12V, 24V, 35V and anything in between.
- Custom engraving available.

DOWNLOAD - PDF DATASHEET

Faradite TAP-5 smart home light switch on decorative wall

Complete range of Faradite TAP home automation switches laying flat on a white surface

Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone

Faradite Brushed Copper TAP-5 on Loxone system

key features

COMPLETE CONTROL

Dry contact / volt Free / potential free outputs connect to most major control systems giving control your lights, lighting scenes, blinds, curtains, and more.

CUSTOM ENGRAVING OPTIONS

Neatly mark switch functions with custom engraving available on all TAP-5 switches.

HALO LIGHT

Configurable halo light provides visual verification of keypad interactions.

MATCHING OUTLETS

Matching wiring accessories available from Focus SB.

BACKbox

60mm centre compatible with both EU round back boxes and square back boxes.

5 - 35V DC power

Much like our popular range of motion sensors, out TAP-5 Volt Free range can be powered from 5V, 12V, 24V, 30V and anything in between.

MAXIMUM SYSTEM COMPATIBILITY

Easy integration with all major control systems such as:

ARTISaNAL hand finiShes

Our range of ORE finishes elevates style and quality. Each solid metal switch is carefully hand finished with outstanding attention to detail.

The brushed metal is finished with a matt lacquer (*except Brushed Nickel finish) that is finger print resistant and gives the metal a soft glow that is aesthetically stunning.

FINELY CURATED OPTIONS

BRUSHED BRASS

BRUSHED ANTIQUE BRASS

BRUSHED NICKEL

BRUSHED JORDAN BRONZE

Rapid connectivity

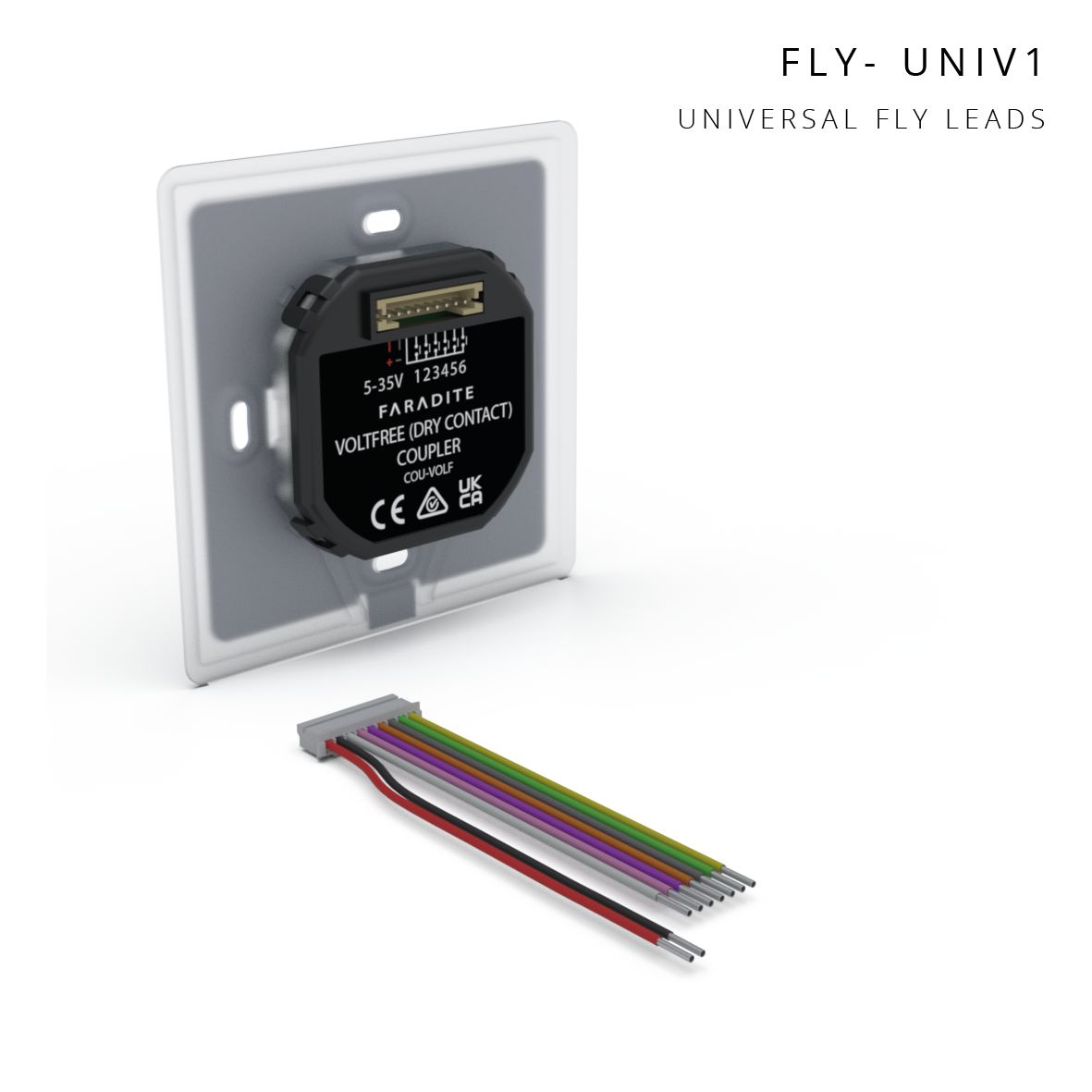

UNIVERSAL fly lead

The FLY-UNIV1 connects into the back of the Faradite

TAP Coupler Volt Free and provides loose fly leads.

The fly leads can be connected to any suitable input

module.

Faradite TAP fly lead with female connectors for dry contact connection to control system

UNIVERSAL Push fit

For systems that require a female terminal the

FLY-UNIV2 allows the connections of fly leads from

any 3rd party device. Supports keypads with 1 - 6

buttons.

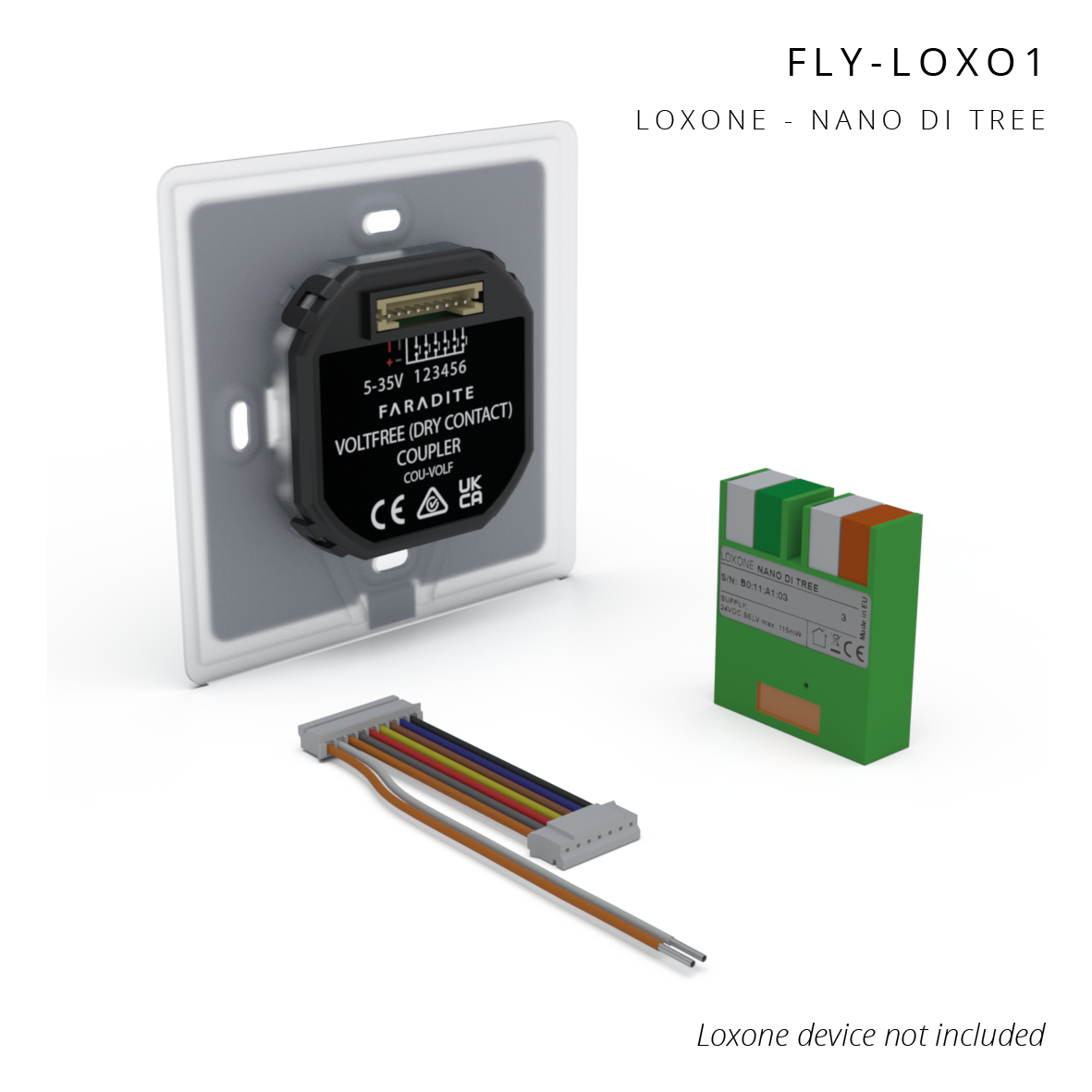

Loxone Nano di tree

Connecting the TAP Volt Free Coupler to a Loxone

Tree bus is simple using the Nano DI Tree. Power

the Coupler by connecting the loose orange and

white fly leads to the orange and white terminal

block.

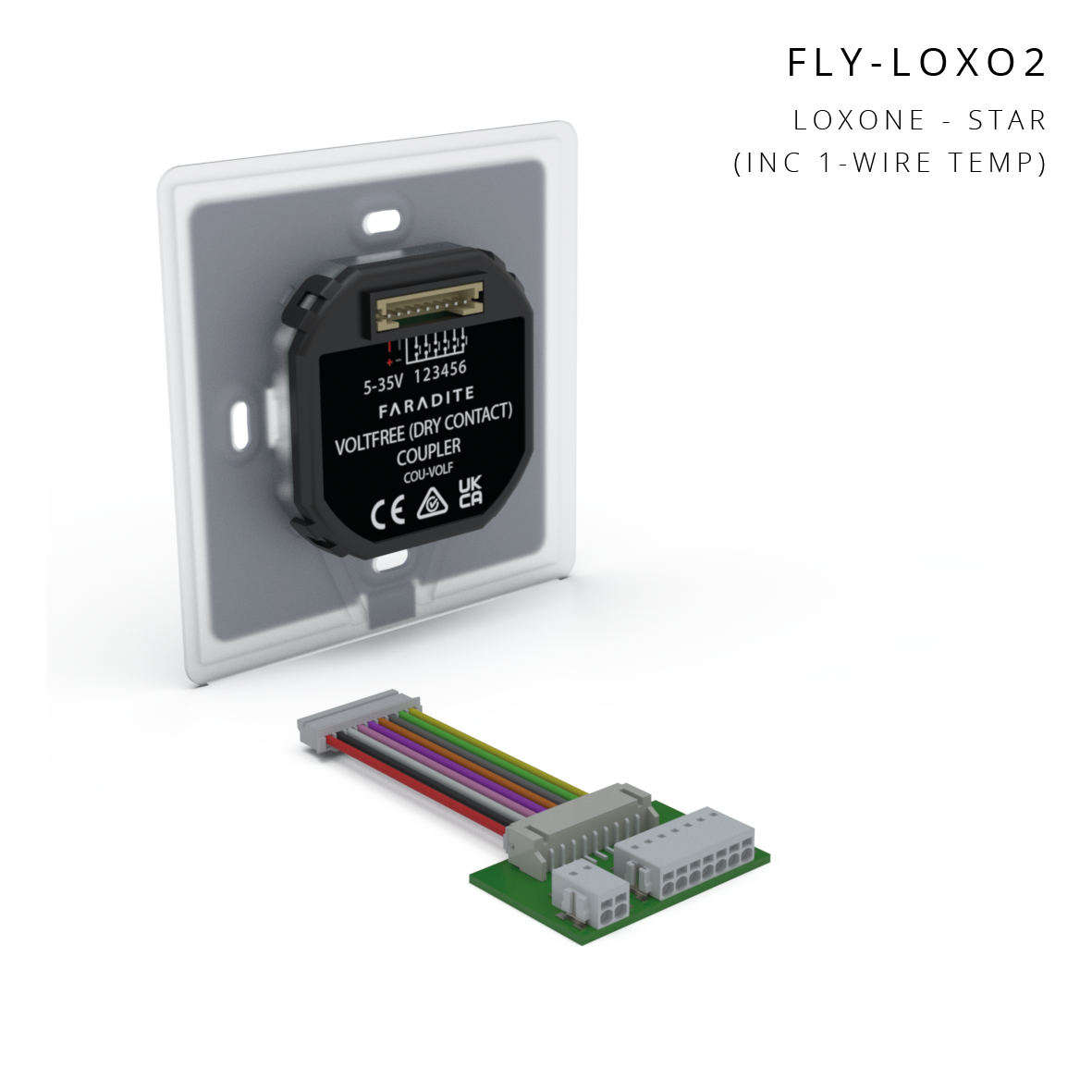

Loxone Star

For Loxone systems that have been star wired the

FLY-LOXO2 allows direct connection to a CAT cable. It

includes a 1-wire temperature sensor.

Faradite Fly Lead to connect TAP switch to Crestron devices

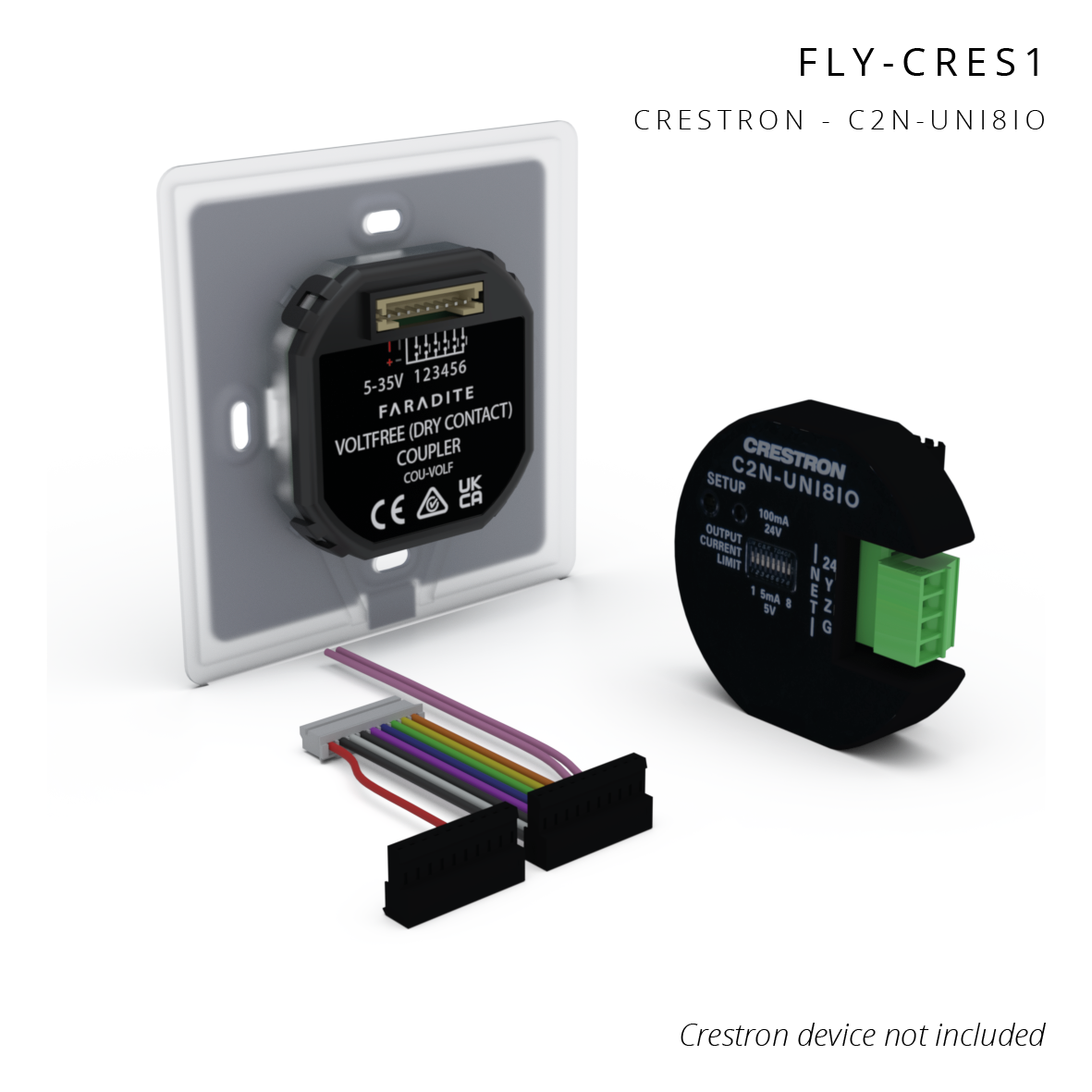

Crestron c2n-un181o

The Crestron C2N-UNI8IO allows for up to 8 inputs

to be connected. The supplied Faradite fly lead uses

inputs 1 - 6 with inputs 7 and 8 spare for external

sensors such as the Motion Sensor 360 - Volt Free.

Note: The C2N-UNI8IO does not support very fast

double taps, only use single tap functions.

Faradite Fly lead to connect TAP switches to Lutron control systems

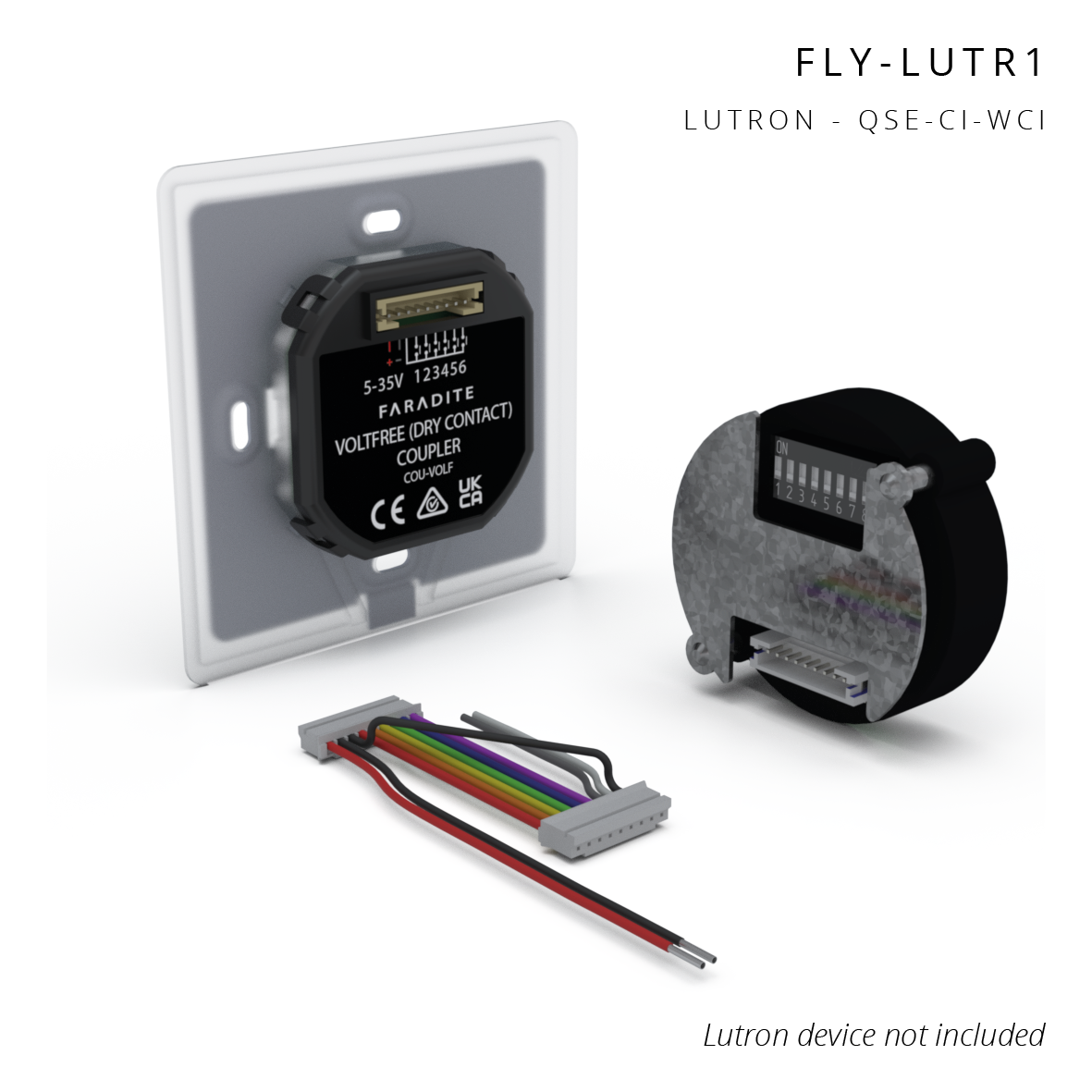

Lutron qse-ci-wci

The Lutron QSE-CI-WCI allows for up to 8 inputs.

Use the Faradite FLY-LUTR1 to connect the TAP

Coupler Volt Free to the Lutron QSE-CI-WCI. Inputs 7

and 8 can be used for additional sensors such as the

Motion Sensor 360 - Volt Free.

custom engraving

We offer custom engraving to beautifully label the four corners of your TAP-5 switches. Choose from our wide selection of icons or alternatively choose any text up to 14 characters long.

TO ENGRAVING PORTAL

TO ENGRAVING PORTAL

OPTIONS = SOLUTIONS

5 GANG FRONTS

TAP5-MWH

TAP5-BSS

TAP5-BCO

TAP5-BNI

SINGLE GANG FRONTS

TAP1-MWH

TAP1-BSS

TAP1-BCO

TAP1-BNI

Rapid connectivity

UNIVERSAL fly lead

The FLY-UNIV1 connects into the back of the Faradite

TAP Coupler Volt Free and provides loose fly leads.

The fly leads can be connected to any suitable input

module.

UNIVERSAL Push fit

For systems that require a female terminal the

FLY-UNIV2 allows the connections of fly leads from

any 3rd party device. Supports keypads with 1 - 6

buttons.

Loxone Nano di tree

Connecting the TAP Volt Free Coupler to a Loxone

Tree bus is simple using the Nano DI Tree. Power

the Coupler by connecting the loose orange and

white fly leads to the orange and white terminal

block.

Loxone Star

For Loxone systems that have been star wired the

FLY-LOXO2 allows direct connection to a CAT cable. It

includes a 1-wire temperature sensor.

Crestron c2n-un181o

The Crestron C2N-UNI8IO allows for up to 8 inputs

to be connected. The supplied Faradite fly lead uses

inputs 1 - 6 with inputs 7 and 8 spare for external

sensors such as the Motion Sensor 360 - Volt Free.

Note: The C2N-UNI8IO does not support very fast

double taps, only use single tap functions.

Lutron qse-ci-wci

The Lutron QSE-CI-WCI allows for up to 8 inputs.

Use the Faradite FLY-LUTR1 to connect the TAP

Coupler Volt Free to the Lutron QSE-CI-WCI. Inputs 7

and 8 can be used for additional sensors such as the

Motion Sensor 360 - Volt Free.

Rapid connectivity

UNIVERSAL fly lead

The FLY-UNIV1 connects into the back of the Faradite

TAP Coupler Volt Free and provides loose fly leads.

The fly leads can be connected to any suitable input

module.

UNIVERSAL Push fit

For systems that require a female terminal the

FLY-UNIV2 allows the connections of fly leads from

any 3rd party device. Supports keypads with 1 - 6

buttons.

Loxone Nano di tree

Connecting the TAP Volt Free Coupler to a Loxone

Tree bus is simple using the Nano DI Tree. Power

the Coupler by connecting the loose orange and

white fly leads to the orange and white terminal

block.

Loxone Star

For Loxone systems that have been star wired the

FLY-LOXO2 allows direct connection to a CAT cable. It

includes a 1-wire temperature sensor.

Crestron c2n-un181o

The Crestron C2N-UNI8IO allows for up to 8 inputs

to be connected. The supplied Faradite fly lead uses

inputs 1 - 6 with inputs 7 and 8 spare for external

sensors such as the Motion Sensor 360 - Volt Free.

Note: The C2N-UNI8IO does not support very fast

double taps, only use single tap functions.

Lutron qse-ci-wci

The Lutron QSE-CI-WCI allows for up to 8 inputs.

Use the Faradite FLY-LUTR1 to connect the TAP

Coupler Volt Free to the Lutron QSE-CI-WCI. Inputs 7

and 8 can be used for additional sensors such as the

Motion Sensor 360 - Volt Free.

SWATCH THINGS UP

Can't decide on a finish? Our beautiful swatch booklet delivers a preview of all 4 gorgeous ORE finishes.

SHOP SWATCH BOOKLET

Let's talk about your project

Matching wiring accessories

Matching
wiring
accessories

Focus SB make a wide range of bespoke wiring accessories and are able to make wiring accessories that will match your Faradite TAP-5 ORE switch. To find out more please contact Focus SB directly or visit their website.

Focus Sb website
