MOTION SENSOR 360 IP67 BLACK- VOLT FREE (DRY CONTACT)

Name: MOTION SENSOR 360 IP67 BLACK- VOLT FREE (DRY CONTACT)
Brand: Faradite
Price: 104.16 GBP
Availability: InStock

£ 104.16

In stock

SHIPPING | TAXES | ORDERING

SKU M360-IP-B-VOLF

Fire Rating

Quantity

The Faradite Motion Sensor 360 - IP67 - Volt Free (Dry Contact) is a 5-35V low profile, silent, discreet PIR (passive infrared) ceiling mounted motion sensor with an IP67 rating.

Protruding only 3.5mm the IP67 ensures discrete motion sensing can be delivered in those more demanding areas such as bathrooms, gardens and outside spaces.

The sensor can be used to automate lights in outside spaces, porches and bathrooms due to its IP67 rating.

The sensor can be used with 5-35V home/buillding/lighting control systems that have volt free / dry contact inputs, such as Lutron, Crestron, Loxone and Control4.

When installing the sensor in a fire rated ceiling please select the fire rated option. When the Fire IDR is fitted the sensor is fire rated for 60 minutes (BS476: Part 21 1987). The height of the Fire IDR is 60mm.

DOWNLOAD - PDF DATASHEET

IP67 rated motion sensors, for those more demanding locations

Simply connects to multiple systems

Simply Connects to Multiple Systems

The sensor can be connected directly to a Control4 system using a simple contact closure.

READ THE BLOG

Great with Lutron lighting control systems by using any contact closure input.

READ THE BLOG

The sensor can be connected directly to a Loxone smart home using a single digital input.

READ THE BLOG

Rako systems can benefit from the Faradite Motion Sensor 360 - Volt Free with easy integration.

READ THE BLOG

Simply connects to multiple systems

Simply Connects to Multiple Systems

The sensor can be connected directly to a Control4 system using a simple contact closure.

READ THE BLOG

The sensor can be connected directly to a Loxone smart home using a single digital input.

READ THE BLOG

Rako systems can benefit from the Faradite Motion Sensor 360 - Volt Free with easy integration.

READ THE BLOG

Great with Lutron lighting control systems by using any contact closure input.

READ THE BLOG

Benefits

100% Silent relay

No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.

High IP rating

The IP67 rating means the sensor can be installed in those more demanding locations.

Adjustable sensitivity

Internal sensitivity adjustment allows for customisation of the sensors detection sensitivity.

DC power

Low voltage power, ideal for a broad range of control systems.

Very Small

So small it can be mounted in a business card. The visible front is just 49mm across.

Low profile

A subtle stylish sensor that protrudes less than 3.5mm from the ceiling or wall.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.

The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY

Black Faradite IP67 Motion Sensor 360 dry contact push fit terminals

STRIP CORE

Our connectors make for a speedy installation. First strip the cable core...

Black Faradite IP67 Motion Sensor 360 dry contact connected cable

PUSH FIT CONNECTION

Simply push the core into the terminal.

Black Faradite IP67 Motion Sensor 360 dry contact terminals

REMOVE CABLE

To remove cables, insert the supplied SIM card remover tool into the slot above the cable terminal to release cable.

Powerful partnership

Pair the Motion Sensor 360 - IP67 - Volt Free with our Sensor Wall Mount Accessory for a beautifully weatherproof, wall mounting solution.

SHOP SENSOR WALL MOUNT

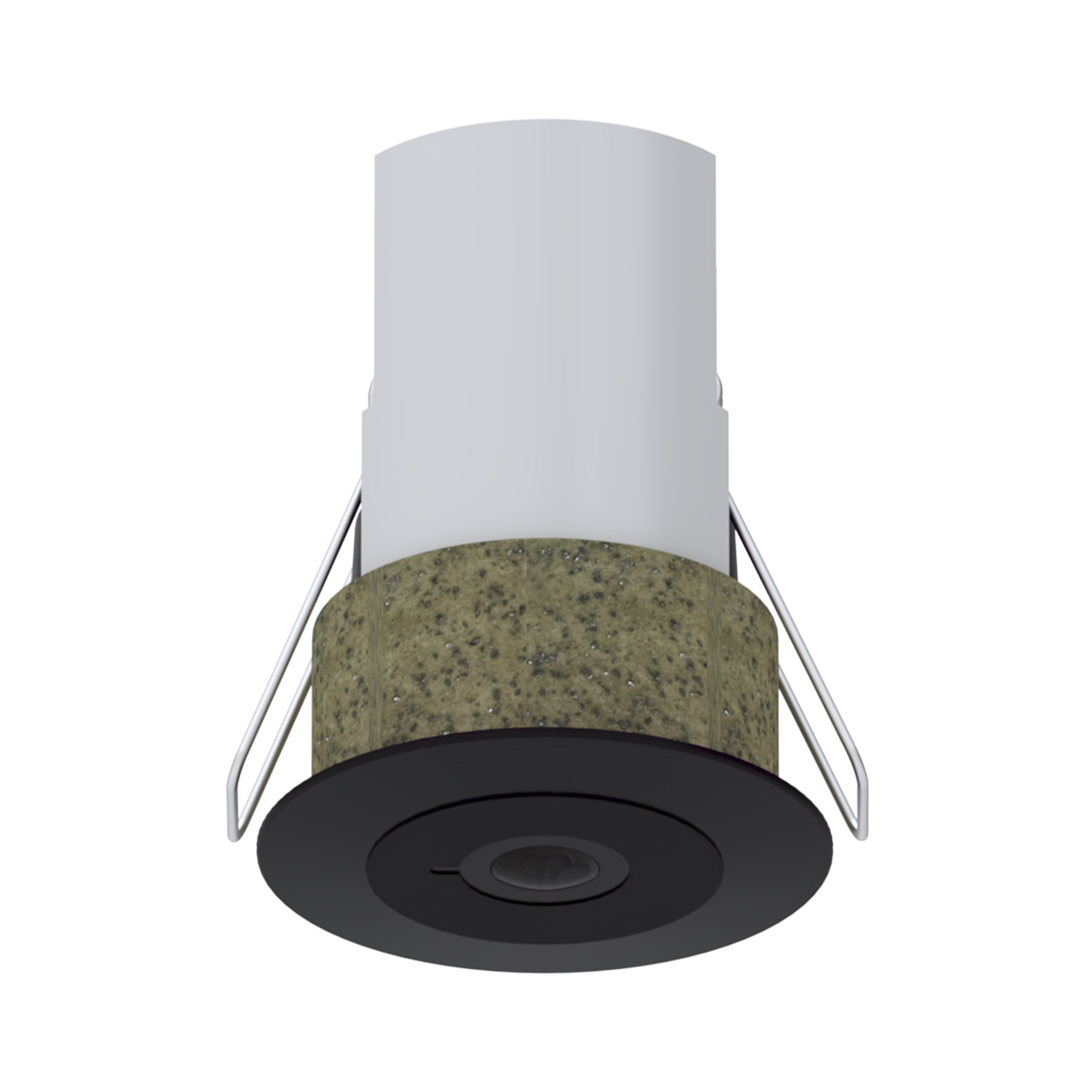

FIRE RATED OPTIONS

The Fire IDR is specially made by Envirograf® to fire rate the Motion Sensor 360 range, according to BS476: Part 21 1987.

The intumescent material expands in a fire, sealing the hole in the ceiling structure. With the Fire IDR fitted, the Motion Sensor 360 has a 60 minute fire rating. The height of the Fire IDR is 60mm.

If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.

DIMENSIONS

Black Faradite IP67 Motion Sensor 360 depth dimensions

technical specification

iNSTALLATION

To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.

pOWER sUPPLY

5V-35V DC @ 24V (3mA)

CONNECTOR

Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6.

RANGE / DETECTION AREA

Specified Range 5M / When mounted at a height of 3M, the sensor covers a 6M x 6M floor area. When mounted at 2.5M, it covers a floor area of 5M x 5M.

Equivalent Circuit

TECHNICAL DOCUMENTATION

CABLE TYPES

Faradite IP67 Motion Sensor 360 cat5 cable entry gland

CAT 5/6

Ideal for CAT 5/6. First, pierce the sealed cable entry with a small screwdriver/nail, next push the CAT cable through ensuring the seal is tight around the cable. Strip cores and terminate into push fit connectors.

Faradite IP67 Motion Sensor 360 stranded cable entry gland

BELDEN

Works with Belden/alarm cable as with CAT cable; pierce the sealed cable entry, push the cable through ensuring the seal is tight around the cable. Strip cores, insert a small screwdriver or the provided tool to open the spring terminals and insert wire.
