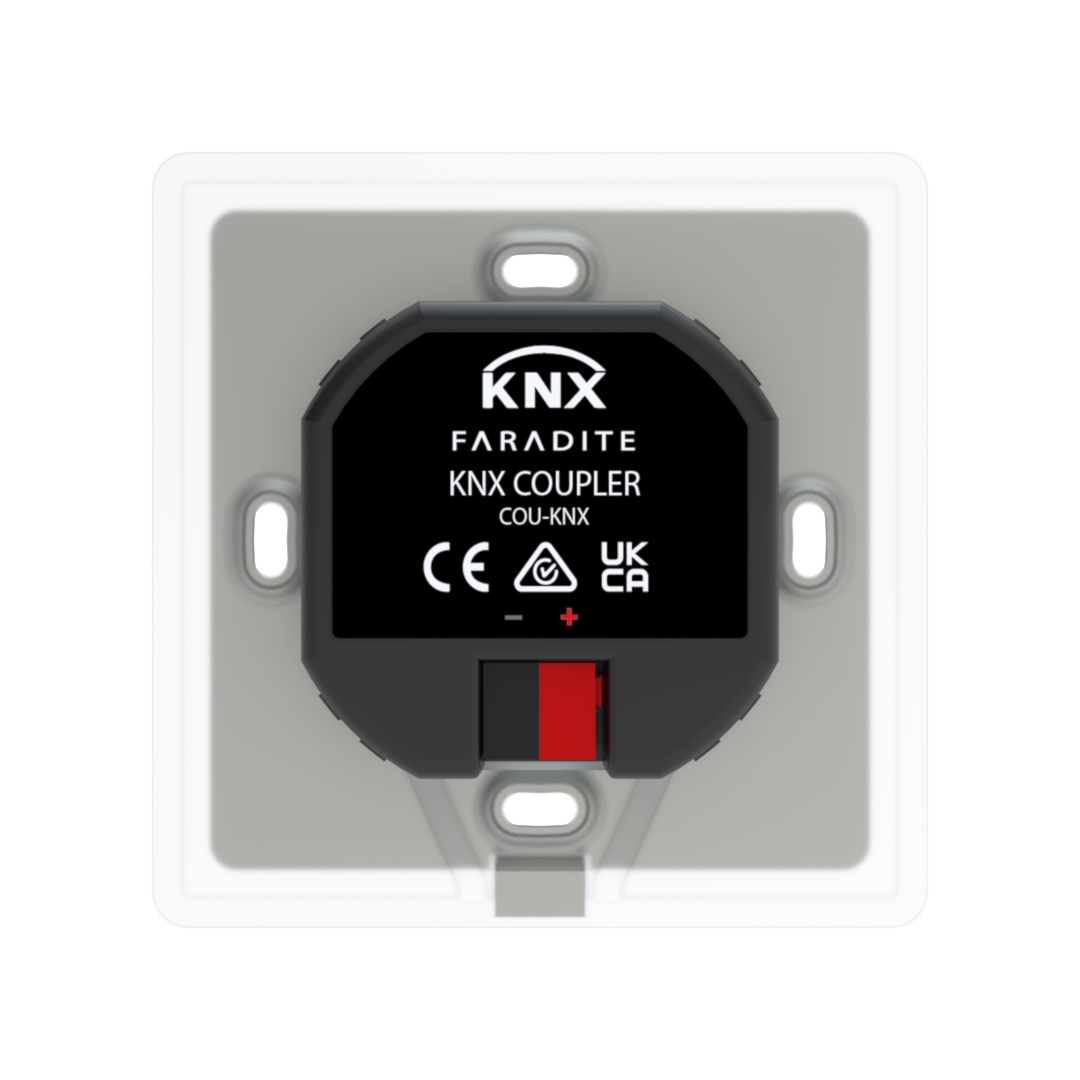

COUPLER - KNX
P.O.A
P.O.A
Modern and minimalist capacitive touch switching
Simply Connects to Multiple Systems
The TAP-5 can be connected to a Loxone smart home via Loxone Tree Technology or directly to a Loxone Miniserver.
connect via loxone tree
The TAP-5 connects directly to the Tree bus using a Nano DI Tree
Connect to Loxone Miniserver
The TAP-5 connects directly to the Miniserver using digital inputs
Features
Temperature Sensor
All our switches come with a temperature sensor. Knowing the temperature of each room is the key to an energy efficient smart home
Touch Vibration
Our favourite feature - the TAP Range gives tactile vibration feedback at each touch, and works with double/triple click functions
24V DC
Compatible with Loxone and other 24V home automation systems
Digital outputs
Connects to the digital inputs of smart home automation systems, allowing your switch plate to control multiple devices
Available for UK and EU back boxes

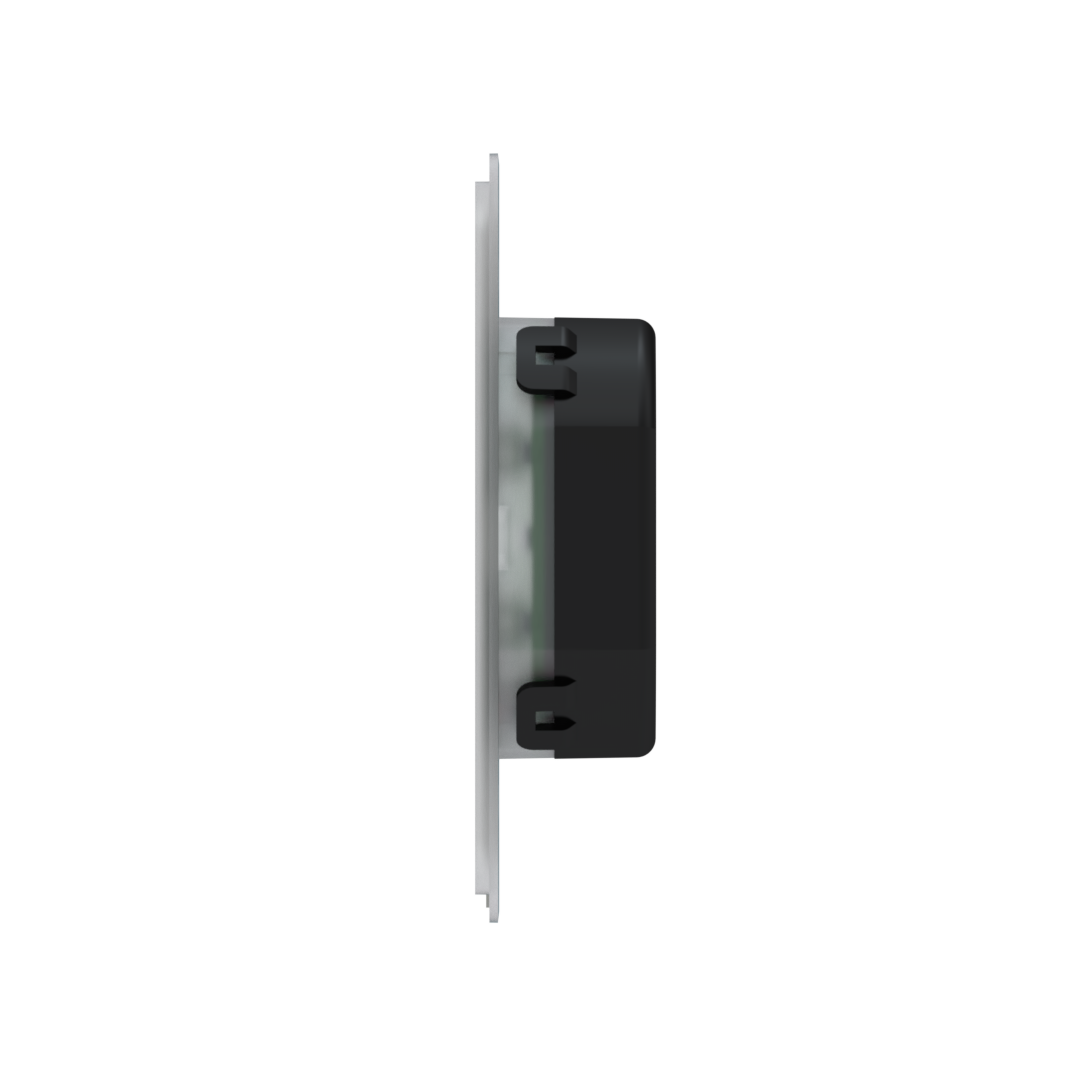

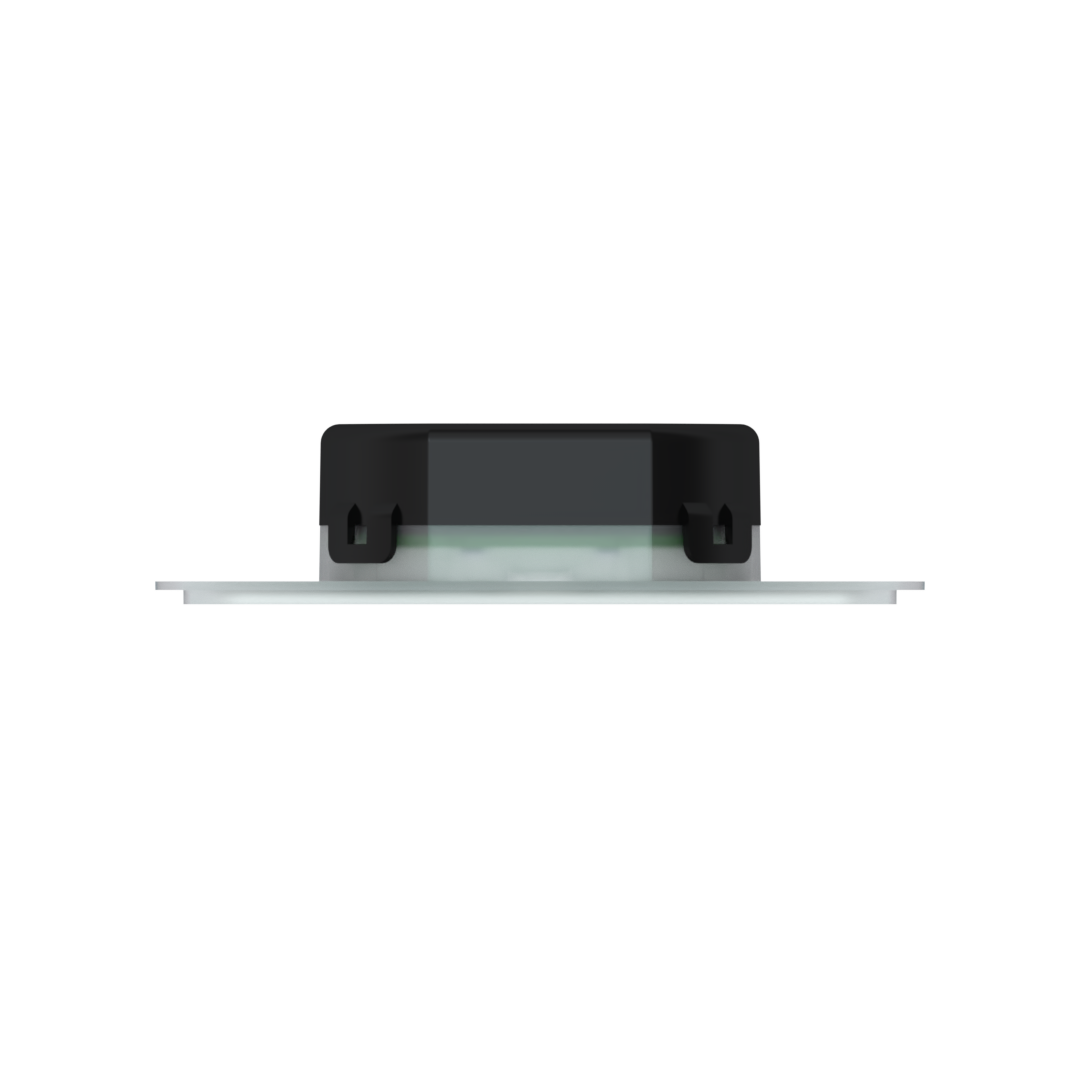

DIMENSIONS
technical specification
DS18B20
Measures temperatures from -55°C to +125°C (-67°F to +257°F) ±0.5°C accuracy from -10°C to +85°C Each device has a unique 64-Bit serial code stored in an on-board ROM
Wire Gauge
Conductor cross section min AWG 24 - max 20 AWG
Mounts
60mm centre for UK & EU back boxes (please ensure that you select the correct variant for your country)

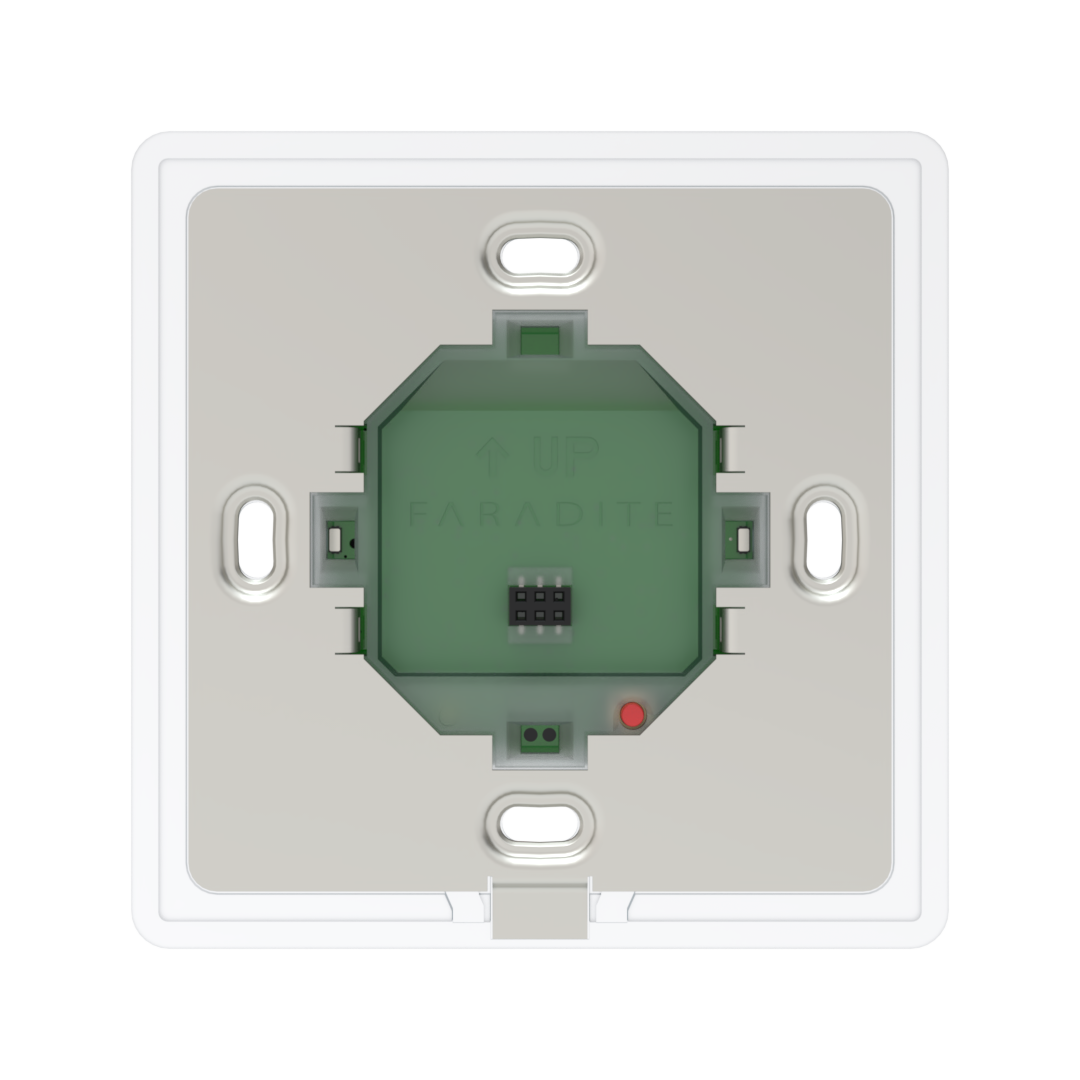

Easy access test points
The TAP-5 comes with easy-to-access test points which have been built in alongside the push-fit connectors allowing you to probe the digital outputs when installed
